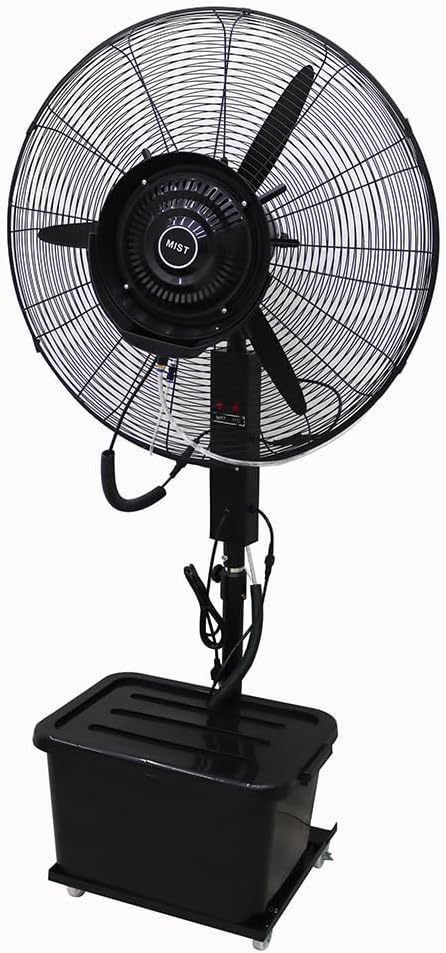

About this item

• Excellent Humidification and Cooling Performance: The spray fan atomizes water into ultra-fine droplets through high-frequency centrifugal rotation, greatly increasing the surface area for evaporation. At the same time, the powerful fan accelerates the air flow over the liquid surface, significantly enhancing the evaporation rate. During this evaporative cooling process, it not only rapidly lowers the ambient temperature but also effectively increases air humidity
• High performance and Low Noise: Equipped with alloy fan blades, the misting fan not only ensures a powerful airflow of up to 158m³/min but also effectively reduces operational noise, providing a comfortable user experience
• Large Water Tank: Equipped with a 42L large-capacity water tank, the industrial mister supports long hours of continuous operation, reducing the hassle of frequent refilling. The tank is designed to be separate from the main body, making water filling and cleaning more convenient
• Flexible to Use: The industrial spray misting fan offers a 90° horizontal automatic swing range and a 30° vertical adjustable angle, allowing even distribution of humidification and cooling effects across an effective area of 30–50 square meters, meeting the needs of various usage scenarios. In addition, the industrial spray fan has three adjustable speed to meet different needs
• Pure Copper Motor: The pure copper motor is not only durable and highly efficient, but also effectively dissipates heat through its porous structure, ensuring stable and long-term operation of the industrial misting fan

Product parameter:

Voltage: 110V

Frequency: 60HZ

Power: 265W(Low）-305W(In）-350W(High)

Blade diameter: 29.5inch(75cm)

Net diameter: 31.5inch(80cm)

Fan height: 63-80.7inch (160-205cm)

Motor: pure copper motor

Tank volume: 42L

Air volume: 158㎡/min

Shaking head range: 90° Automatic shaking head

Up and down angle: 30°

Effective area: 30-50㎡

Working temperature: 10℃-45℃

Working environment humidity: 10%-85%

Continuous spray: Automatic water addition

Operating instructions:

Place the spray fan on the horizontal surface.

Ensure that the water pump inlet is unblocked.

When the water tank is filled with clean water, the minimum water level should be higher than the pump height.

Spray fans should not be used when water is insufficient to ensure that the fans are running properly.

Adjust the spray quantity and the fan to ensure that the fan works normally.

Turn on the fog switch to ensure all parts are working properly.
