About this item

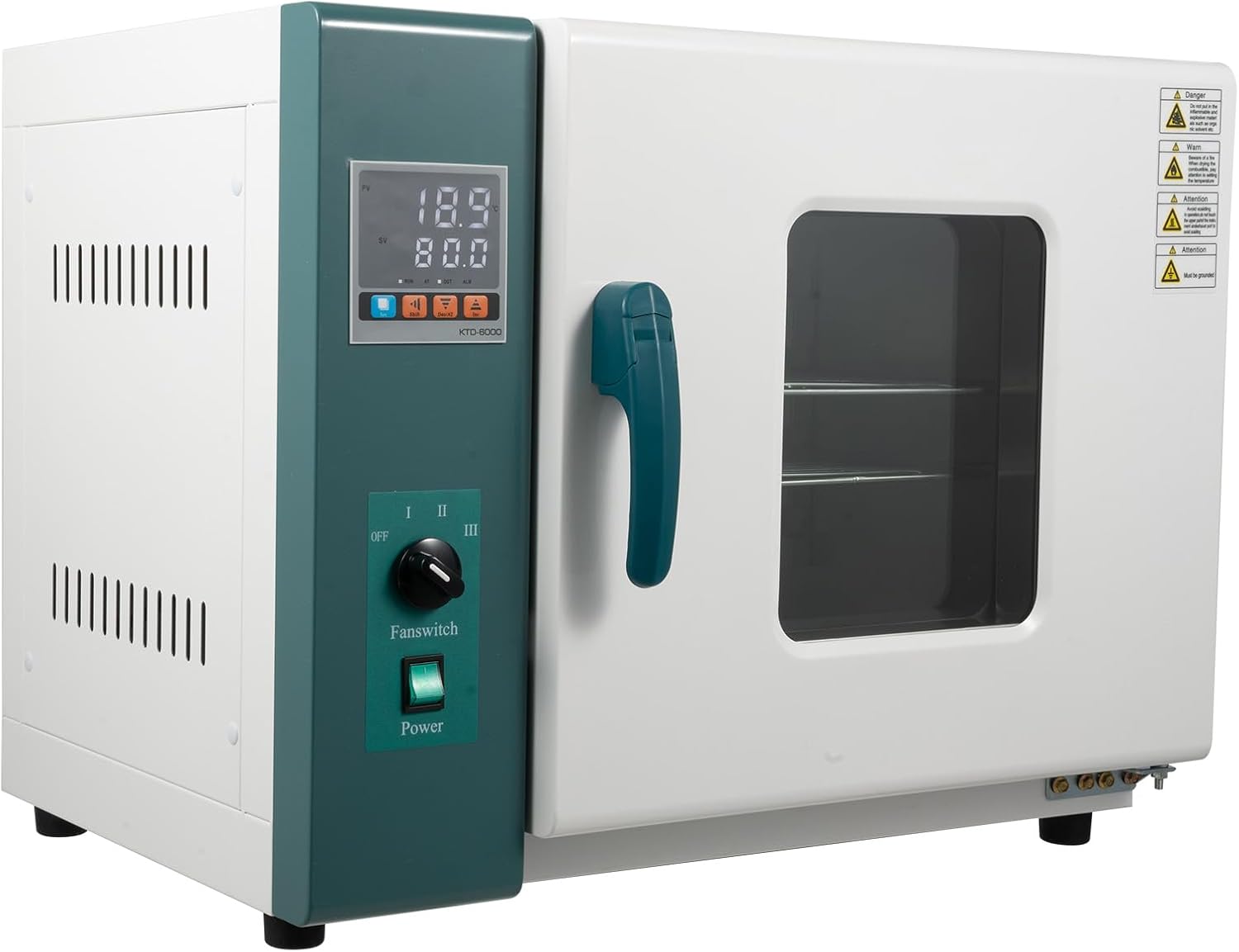

• EXCELLENT MATERIAL: The shell of the constant temperature blast drying box adopts high-quality cold plate processing and molding after spraying technology. The stainless steel inner liner can well resist high temperature and ensure long-term stable operation. The new synthetic silicone sealant has beautiful appearance and excellent sealing performance, which can be operated under high temperature for a long time.
• INTELLIGENT TEMPERATURE CONTROLLER: The digital display PID temperature controller of the blower drying oven has the functions of timing, over-temperature alarm indication, temperature deviation correction and temperature self-tuning control. Drainage holes at the top of the blower drying box can quickly remove internal moisture to maintain good drying effect. Double rows of heat dissipation holes can quickly discharge the heat during operation to ensure long-term stable operation.
• UNIFORM HEATING: This thermostatic blast drying oven can be set to a maximum of 572°F (minimum 18°F above room temperature) to accommodate drying, heating, reheating and more. Natural convection promotes air circulation, combined with an independent fan switch, for faster, more uniform drying. The hot air circulation system utilizes a low-noise, self-cooling fan that makes no noise during the drying process, preventing disruptions to your work and rest.
• LARGE CAPACITY: This 12-gallon double-deck drying oven, combined with 2 adjustable trays that can each hold up to 33 pounds, allows you to save time and increase efficiency by drying more materials or items at one time and making large quantities of high-performance materials for your lab. A large, double-paned tempered glass viewing window makes it easy to see what's going on inside the oven.
• WIDE RANGE OF EXTERNAL CONNECTIONS: The constant temperature blast drying box can also be installed according to the actual needs of the LCD instrument panel, programmable instrument panel, printer, 485 interface, USB storage, SMS alarm and other additional functions (are not included). The constant temperature blast drying box is suitable for industrial and mining enterprises, schools, scientific research institutes and laboratories, through the hot air circulation system for drying, baking, melting wax, heat treatment and other work.

Specification

Model: 101-0AB

Material: Cold Plate, Stainless Steel

Color: White, Green

Style: Modern

Surface Treatment: Spraying

Assembly Required: No

Door Style: Side-open Door

Control Type: Button Control

Power: 1000W

Voltage: 110V

Capacity: 45L/12Gal

Temperature Range: RT+10°C～300°C/RT+18°F～572°F

Tray Maximum Loading: 15kg/33lbs

Tem. Resolution: 0.1°C/0.18°F

Tem. Fluctuation: ±1°C/±1.8°F

Gross Weight: 36.35kg/80lbs

Net Weight: 32.25kg/71lbs

Tray Spacing: 6cm/2.36in

Tray Size: 32.5*33.5cm/12.8*13.18in

Window Size: 19*24.5cm/7.48*9.64in

Product Inner Size: 34*34*35cm/13.38*13.38*13.78in

Product Size: 46.5*65*49.5cm/18.3*25.6*19.48in

Package Size: 58*60*73.5cm/22.83*23.62*28.93in

Package Included

1*Horizontal Electric Blast Drying Oven

1*English Manual

All Accessories for Assembly

Notes

1.Please carefully read the manual and strictly follow the precautions to have a better experience.

2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
