About this item

• 【Large Capacity & Heavy-Duty Design】Achieve lab efficiency with our 12Gal double-tier drying oven, featuring 2 adjustable trays (33 lbs capacity each). Ideal for bulk drying of lab equipment, glassware, or materials, this industrial-grade oven maximizes productivity while saving time. Stainless steel liner and anti-slip feet ensure stability and long-term durability.
• 【Precision Temperature Control & Uniform Heating】 Engineered for versatility: Set temperatures from 18°F above ambient up to 572°F for drying, heating. Natural convection and optional fan mode guarantee even heat distribution. The PID digital controller with auto-tuning minimizes temperature fluctuations for consistent results.
• 【Lab-Smart Features & Safety Assurance】 Upgrade workflows with an intuitive button-controlled interface (water-resistant design) and programmable timer. Over-temperature alarms, self-cooling fans, and dual heat-dissipation vents prioritize safety. Optional add-ons (LCD panel, USB, SMS alerts) future-proof your setup for evolving lab needs. (all excluded).
• 【Rapid Drying & Enhanced Visibility】 Speed up experiments with a top drainage hole for moisture removal and tempered glass observation windows. The silicone-sealed chamber locks in heat, while noise-reducing fans (<30 dB) ensure quiet operation—perfect for shared lab spaces.
• 【Industrial-Grade Construction & Reliability】 Built to last: Cold-rolled steel exterior and high-temp-resistant inner liner withstand rigorous daily use. Backed by a corrosion-resistant coating and 24/7 thermal stability, this oven delivers unmatched longevity for demanding laboratory environments.

Description

Precision experiments have higher requirements for materials and instruments, especially in temperature control.

Details

Observation Window: A large double-tier tempered glass observation window makes it easy to observe changes in the items inside the box.

Anti-slip Feet: The anti-slip feet can effectively maintain the stability of the machine and prevent the desktop from being scratched.

Drainage Hole: The top drainage hole can quickly remove internal moisture and maintain a good drying effect.

Sealant: A new type of synthetic silicone sealant with a beautiful appearance, and excellent sealing performance can operate at high temperatures for long periods.

Heat Dissipation Holes: Double-row heat dissipation holes can quickly exhaust the hot air during operation, ensuring long-term stable operation.

Application

This device is suitable for industrial and mining enterprises, schools, research institutes, pharmaceutical and health industries, laboratories, and other units to carry out drying, baking, wax melting, heat treatment, and other work through a hot air circulation system.

Specifications

Material: Cold Plate, Stainless Steel

Color: White, Green

Surface Treatment: Spraying

Assembly Required: No

Door Style: Side-open Door

Control Type: Button Control

Power: 1000W

Voltage: 110V

Capacity: 45L/12Gal

Temperature Range: RT+10°C～300°C/RT+18°F～572°F

Tray Maximum Loading: 15kg/33lbs

Tem. Resolution: 0.1°C/0.18°F

Tem. Fluctuation: ±1°C/±1.8°F

Gross Weight: 36.35kg/80lbs

Net Weight: 32.25kg/71lbs

Tray Spacing: 6cm/2.36in

Tray Size: 32.5*33.5cm/12.8*13.18in

Window Size: 19*24.5cm/7.48*9.64in

Product Inner Size: 34*34*35cm/13.38*13.38*13.78in

Product Size: 46.5*65*49.5cm/18.3*25.6*19.48in

Package Size: 58*60*73.5cm/22.83*23.62*28.93in

Package Included

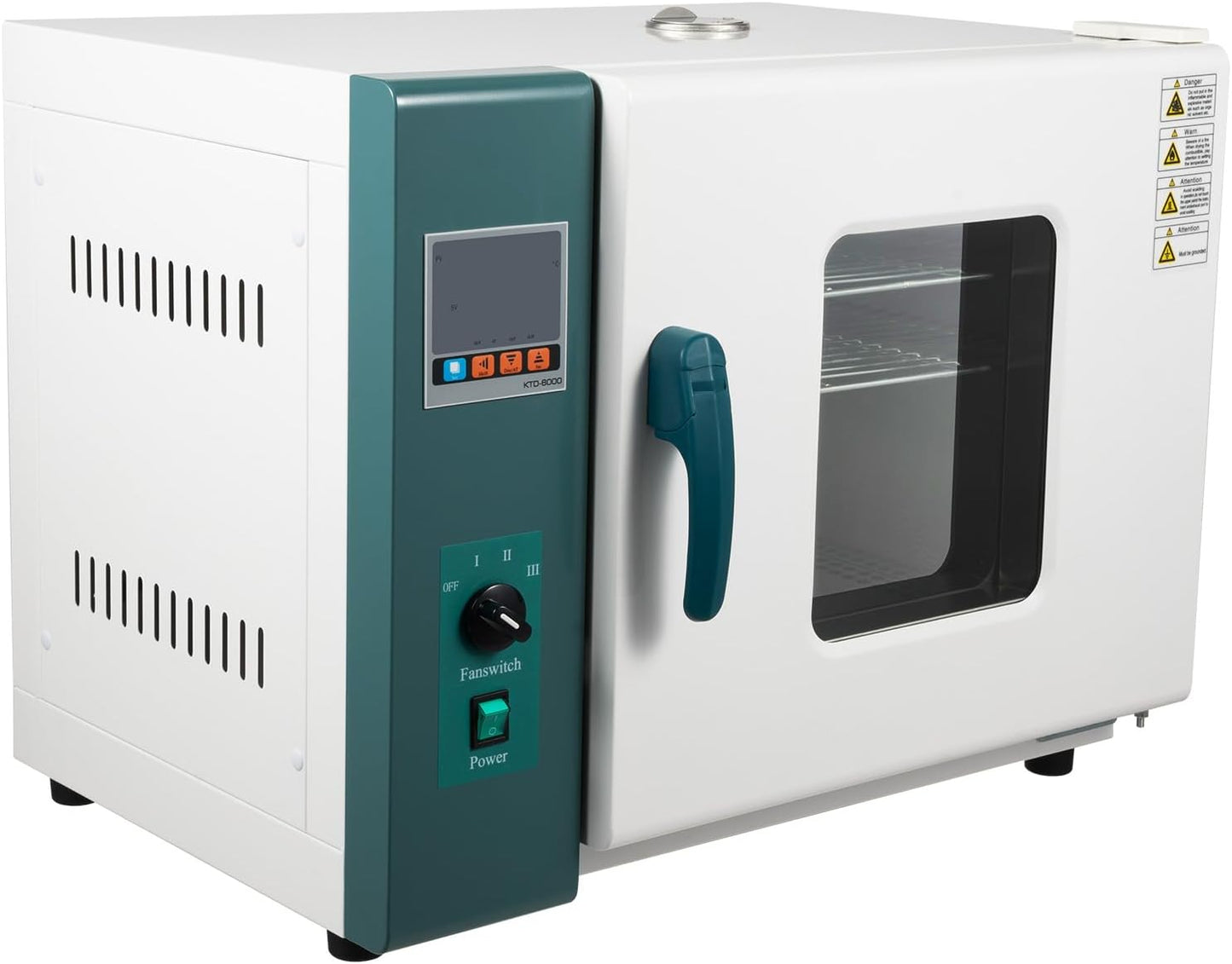

1*Horizontal Electric Blast Drying Oven

1*English Manual

All Accessories for Assembly

Notes

Please carefully read the manual and strictly follow the precautions to have a better experience.
