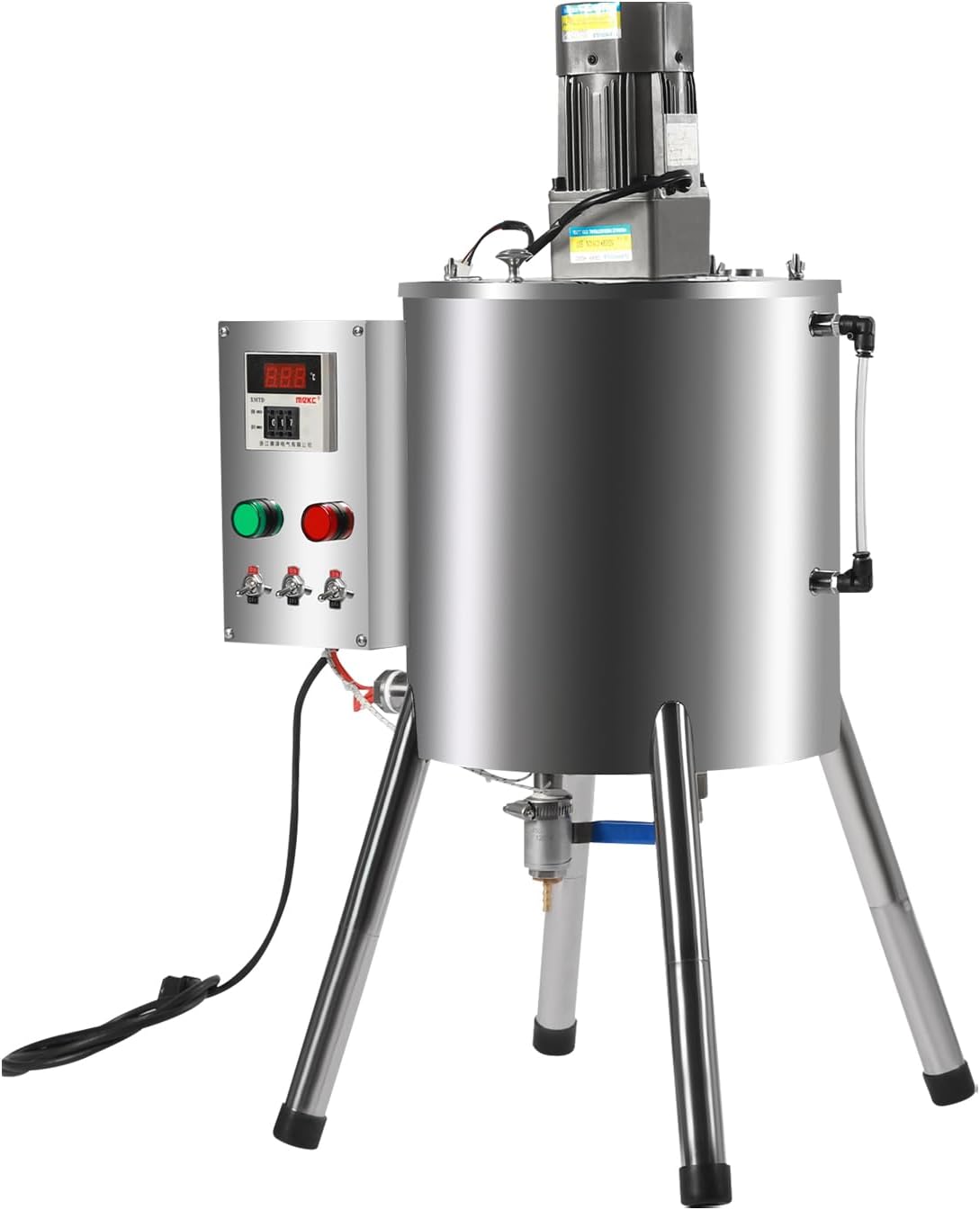

30L\/8Gal Commercial Automatic Heating Stirring Mixing Filling Machine, 110v 1500w Lipstick Filling Machine for Dissolving and Filling Lipsticks, Candles, Vaseline, Oils

• PREMIUM QUALITY MATERIAL: Corrosion and heat resistant premium 304 stainless steel plate (0.08 inch thick) will not react with the material, ensuring the purity of the filling while providing excellent durability. Professional automatic argon arc welding process to create seamless and dense welding joints.
• UNIFORM HEATING AND MIXING: Powerful copper motor (36rpm, 60 watts), T-shaped paddles and dual industrial-grade heating tubes (0.75kw*2) provide uniform and efficient mixing and heating of the material. 8-gallon capacity easily achieves efficient filling of 20-45 bottles per minute.
• ANTI-LEAKAGE & CURING: Stainless steel spout with C-type heating tube and ball valve control, to achieve the whole process of constant temperature heating and manual control of oil discharge, effectively preventing leakage and curing.
• CONVENIENT OPERATION: The panel is equipped with temperature control, indicator light, valve heating switch, stirring switch, chamber heating switch and temperature display, which allows you to control different modules in an easy and orderly way to achieve efficient filling.
• WIDELY USE: The temperature of the heating layer can reach 90℃ when adding water, and the maximum heating temperature can reach 300℃ when adding heat-conducting oil, which can be applied to dissolve and fill different materials, such as lipsticks, shoe polishes, ointments, petroleum jelly, wax products, honey, and other pastes and liquids in the fields of daily-use chemicals and food.

Description

• With excellent mixing ability, sealing, and constant temperature heating performance, this lipstick-filling machine is an ideal tool to improve filling efficiency and quality. With its 8-gallon capacity, adjustable heating temperature, and simple operation, it will do liquid and cream filling for you excellently.

Details

Stabilizing Support Pillars: Four support pillars with non-slip sleeves at the bottom provide stable support to prevent the product from slipping.

Removable Lid: The lid has screws for easy removal and installation. The handle facilitates opening and closing the lid.

Level Gauge: The mezzanine is equipped with a level gauge for easy observation of water/oil levels.

Copper Valves: Corrision-resistant copper valves are sturdy. The user-friendly valve handle makes operation easier and more accurate.

Heat Dissipation Holes: Multiple heat dissipation holes of the motor can dissipate heat in time to prolong the service life.

Protective Cover: Temperature control panel with a clear protective cover can effectively prevent dust and water to improve the safety of use.

Application

• It is used for dissolving and filling creams and liquids in daily chemical, food, and pharmaceutical fields such as lipstick, shoe polish, ointment, petroleum jelly, wax products, perfume, honey, edible oil, juice, beer, beverage, and skin care water.

Specification

• Model: YK-30L
• Application: Liquid, Paste
• Material: 304Stainless Steel, Copper
• Color: Silver
• Voltage: 110V 60HZ
• Plug: US Standard
• Capacity: 30L/8gal
• Heating Power: 1.5kw(2*0.75kw)
• Stirring Power: 60w
• Stirring Motor Max. Speed: 36rpm
• Power Supply: 2.1kw
• Outlet Heating Power: 120w
• Certificate: CE
• Filling Accuracy: ±1%(Specific Accuracy is Controlled Manually)
• Adjustable Temperature: 0-300℃/32-572℉
• Assembly Required: Yes
• Filling Mode: Manual
• Power Sources: Electric Corded
• Filling Speed: 20-45 Bottle/min(Depends on Actual Personal Degree of Operation Proficiency)
• Process: Automatic Argon Arc Welding. Polishing
• Gross Weight: 30kg/66lbs
• Net Weight: 25kg/55lbs
• Package Size: 46*62*59cm/18.1*24.4*23.2in
• Product Size: 53*39*79cm/20.87*15.35*31.3in
• Bucket Wall Thickness: 2mm/0.08in

Package Included

• 1*Lipstick-filling Machine
• 1*Stirrer
• 4*Support Pillars
• 1*English User Manual
• All Accessories Needed for Use

Notes:

• The heating switch of the valve cannot be opened continuously, it can only be opened for 5-10 seconds before it needs to be closed. If the temperature of the customer's material is too high, it may reach the ignition point and cause accidents
