About this item

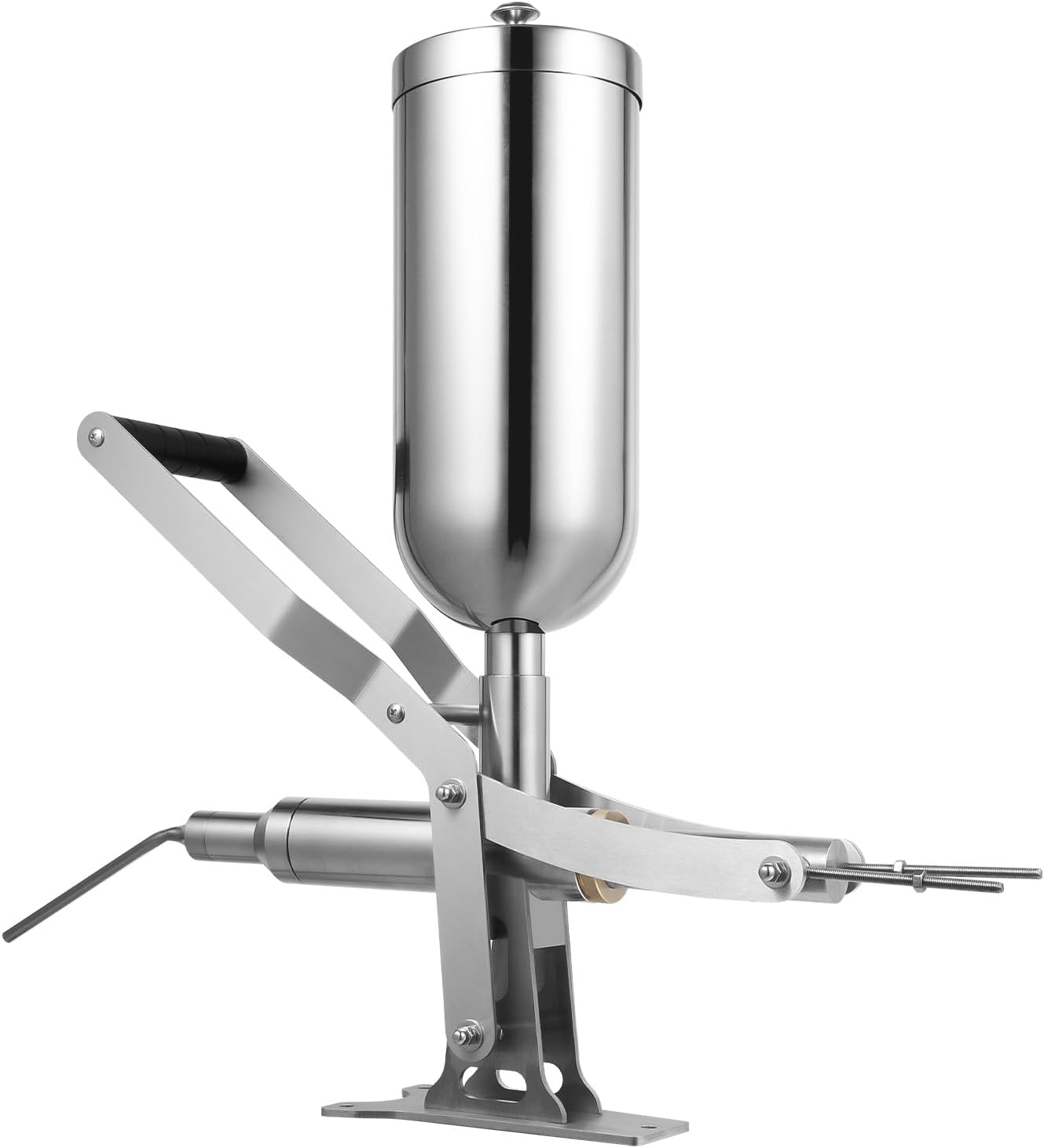

• 【Highly Efficient】Our manual donut-filling machine‘s accurately quantitative filling of cream can fill you with more donuts in a shorter amount of time, taking your business to the next level! The equipped 4 anti-drip filling nozzles for replacement can meet your different needs!
• 【Large Capacity】 A large capacity hopper can fill approximately 5.28qt of cream at once, avoiding frequent refilling and providing you with a more efficient working environment.
• 【Quantitative Filling】 The tail screws can adjust the single filling amount. With a filling accuracy of up to ± 1G, it allows you to adjust the amount reasonably according to the specific capacity of the filled dessert/container.
• 【Easy to Use】Our manual donut-filling machine is easy to operate, just insert the filling nozzle into the donut, and gently pull the handle to fill the cream into the donut.
• 【Durable & Sturdy】 Our manual donut-filling machine is made of high-quality 304 stainless steel, which is sturdy and durable. Its excellent high-temperature resistance (up to 248°F) also allows you to safely place hot fillings inside, ensuring food safety.

Specifications

Material: 304 Stainless Steel

Color: Silver

Style: Modern

Surface Treatment: Brushing, Mirror Treatment

Assembly Required: Yes

Operation Type: Manual

Number of Nozzles: 4 (1 Long Nozzle, 3 Short Nozzles)

Capacity: 5L/5.28qt

Filling Weight: Min. 2g/0.004lbs

Filling Accuracy: ±1g/0.002lbs

Applicable Max. Temperature: 120°C/248°F

Gross Weight: 7.85kg/17.3lbs

Net Weight: 7kg/15.43lbs

Product Size: 60*65cm/23.62*25.6in

Base Size: 18*10.5cm/7*4.13in

Handle Length: 14cm/5.51in

Short Nozzle Length: 7.5cm/2.95in

Long Nozzle Length: 19cm/7.48in

Package Size: 58.5*33*19cm/23*13*7.48in

Package Included

1*Manual Donut-Filling Machine

1*Long Nozzle

3*Short Nozzles

1*English Manual

All Accessories for Assembly

How to Install

When you get this machine, most of the parts are assembled. You just need to assemble the hopper and nozzles.

1.Assemble the connecting rod with an M6 lock nut and washer.

2.Install two positioning rods with M6 lock nuts.

3.Choose a suitable nozzle and install it on a small funnel. Then install the hopper.

4.Finally, the entire filling machine is completed and assembled.

If you want a more precise filling volume, please install the rod of the dosing device(not included), and then tighten the nut.

Notes

1.Please carefully read the manual and strictly follow the precautions to have a better experience.

2.Please note that it is not suitable for particularly thick paste materials.
