About this item

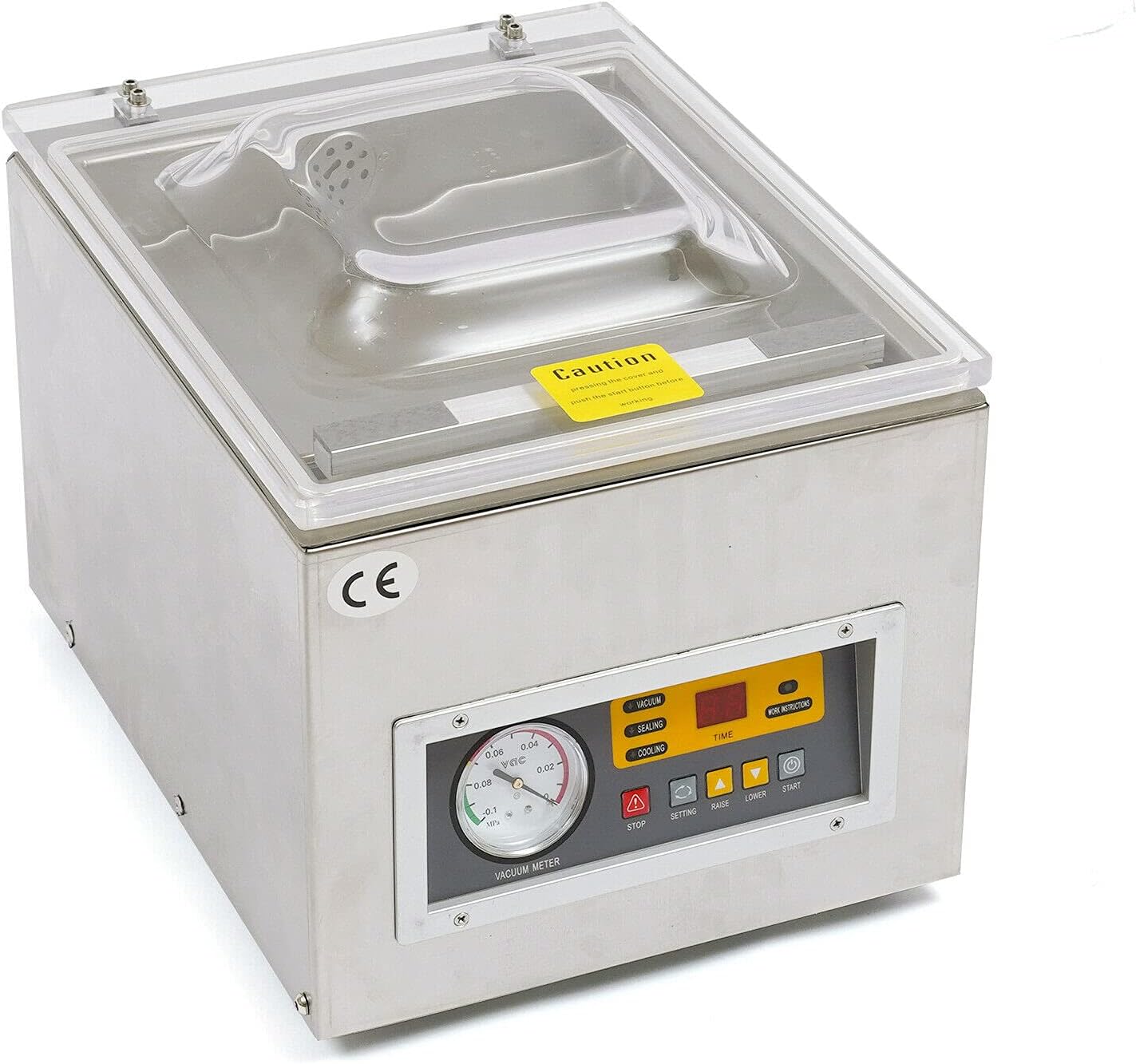

• 【Build to Last】: This vacuum packaging machine is made of premium stainless steel, along with the high-temperature sealing tape, making it strong, high-strength, heat-resistant, corrosion-resistant, anti-rust, and reusable.
• 【Powerful Vacuum Packaging Machine】: With a copper wire pump and 1Kpa minimum chamber pressure, this machine has strong suction and low energy consumption, ensuring the freshness of your food and efficient vacuum sealing.
• 【Wide Compatibility】: It is widely compatible with all vacuum bags, liquid, solid, or powder plastic film or plastic aluminum foil film. Moreover, it has a wide range of sealing temperatures (controlled through medium, high, and low gears) and is common for dry, wet, oil, and powder.
• 【Multifunctional Control Panel】: Come with an intuitive digital panel divided into several parts, vacuum gauge, operating adjustment zone, emergency stop button, and sealing temperature zone. The vacuum gauge results in accurate real-time observation.
• 【Great Vacuum Effect】: Motor Power: 0.12 KW; Effective Sealing Size(L x W): 10" x 0.24"(255 mm x 6 mm); Vacuum Pump Rate: 3 m³/h; Chamber Dimensions: 12.9'' x 10.8'' x 2''(330 x 275 x 50 mm).

Power Cable: The 3.9ft thickened power cable ensures safe and convenient use.

Anti-slip Feet: The non-slip feet on the bottom can prevent the machine from slipping and avoid scratching the tabletop.

How to Use

1. Open the rear panel. (Any type of vacuum oil is fine, add it to half of the display on the oil window.)

2. Add vacuum pump oil into the vacuum pump.

3. Set the vacuum time, sealing time, and cooling time (depending on the specific bag and material) according to the red light, and use the setting key to switch and raise and lower key to adjust.

4. Press the setting button again to set the machine to ED state.

5. Put the items in the vacuum chamber, clamp the seal, close the lid, and press the start button to start the vacuum seal.

6. After the operation is over, the lid will automatically pop open.

Specifications

Model: DZ-260S

Color: Silver

Shell Material: Stainless Steel, Acrylic

Treatment: Non-stick Coating

Operation Mode: Automatic

Number of Sealing Tape: 1

Power Source: Corded Electric

Plug: US Standard

Voltage: 110V/60HZ

Power: 120 W

Noise: <80dB

Air Inlet Diameter: 6mm/0.23inch

Current: 5A

Exhaust Rate: 5.5L/s

Packing Speed: 1~4 pcs/min

Minimum Absolute Pressure in the Chamber: ≤1KPa

Suction Speed: 2 CFM

Power Cable Length: 1.2m/3.9ft

Power Cable Size: 4mm²

Max. Applicable Bag: 30*26cm/11.8*10.23inch

Sealing Tape Length: 260mm/10.23inch

Sealing Size: 260mm*10 mm/10.23*0.4inch

Chamber Size: 33*27.5*5cm/12.9*10.7*2 inch

Chamber Inner Size: 27*26*5cm/10.63*10.23*2inch

Machine Size: 40*31*28cm/15.75*12.2*11.02inch

Package Size: 41*32*29cm/16*12.2*11.4 inches

Net Weight: 21kg/46.3lbs

Gross Weight: 23kg/50.7lbs

Package Included

1* Vacuum Packaging Machine

1* Power Cable

1* Allen Key

1* Heating Wire

1* High-temperature Cloth

1Pot* Lubricant Oil

1* English Instruction
